PT connection syntax

Starting from v0.4.0, SoyutNet supports a simpler syntax for connecting places and transitions by overloading operators >>, <<, >, <.

• soyutnet.pt_common.PTCommon.__rshift__()

• soyutnet.pt_common.PTCommon.__lshift__()

• soyutnet.pt_common.PTCommon.__gt__()

• soyutnet.pt_common.PTCommon.__lt__()

Graph format

• Places are represented by circles with labels \(p_i\).

• Transitions are represented by boxes with labels \(t_i\).

• Arcs are arrows with labels in the form of ‘\(w ~ \{l_1, l_2, \dots \}\)’.

  • \(w\) is the weight of arc.

  • \(\{l_i\}\) is the arc labels meaning that a particular arc accepts tokens with a label in the set \(\{l_i\}\).

  • If arc has no label, then it has the default label ‘\(1 \{0\}\)’.

Single branch examples

            assert t1 == p1 >> t1
            assert t1 == t1 > p1

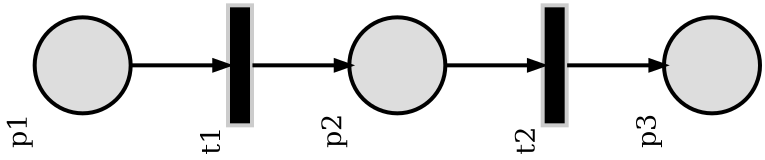

            assert p3 == (p1 >> t1 >> p2 >> t2 >> p3)

            assert p1 == (p1 > (t1 > (p2 > (t2 > p3))))

            assert p1 == (p3 << t2 << p2 << t1 << p1)

            assert p3 == (p3 < (t2 < (p2 < (t1 < p1))))

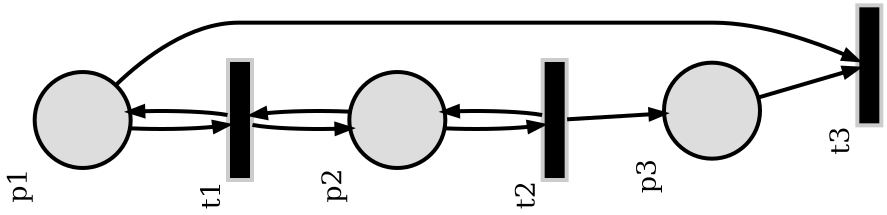

            assert p3 == (p3 > (t2 >> p2 >> t1 >> p1 >> t3))

            _ = net.Arc()
            assert p3 == (p1 >> _ >> t1 >> _ >> p2 >> t2 >> _ >> p3)

            _ = net.Arc()
            assert p1 == (p3 << _ << t2 << _ << p2 << _ << t1 << _ << p1)

            _ = net.Arc()
            assert t2 == (p1 > _ > t1 > _ > p2 > _ > t2 > _ > p3)

            _ = net.Arc()
            assert t1 == (p3 < _ < t2 < _ < p2 < _ < t1 < _ < p1)

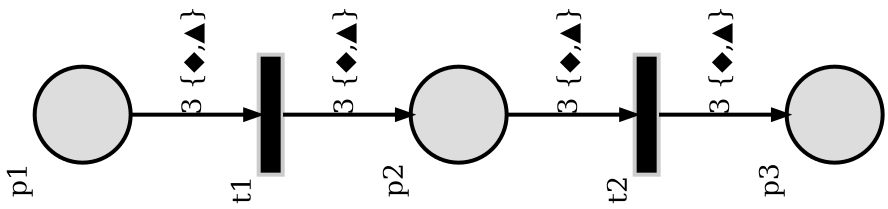

            _ = net.Arc(weight=3, labels=[1, 2])
            assert t1 == (p3 < _ < t2 < _ < p2 < _ < t1 < _ < p1)

Multiple branch examples

            _ = net.Arc(weight=2)
            assert p2 == (p1 >> _ >> t1 >> p2)
            assert p3 == (t1 >> p3)

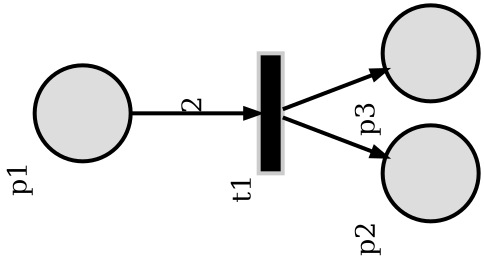

            _ = net.Arc(weight=2)
            assert t1 == (p1 >> _ >> t1 > {
                p2,
                p3,
            })

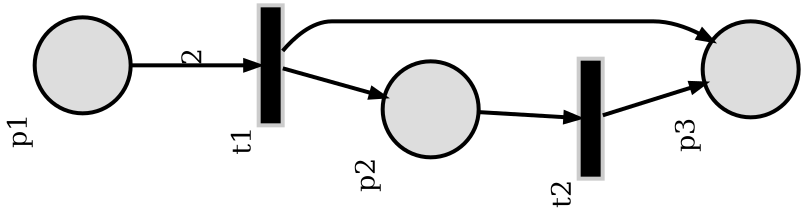

            _ = net.Arc(weight=2)
            assert t1 == (p1 >> _ >> t1 > {
                p3 << t2 << p2,
                p3,
            })

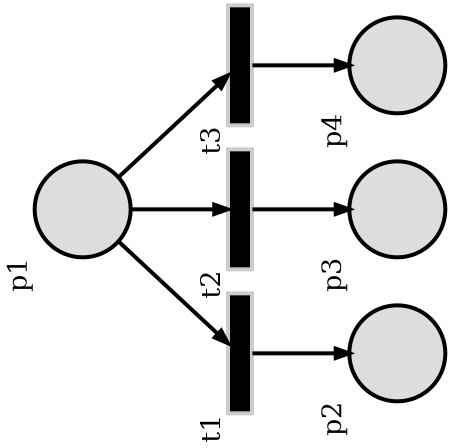

            assert p1 == (((p1 > t1) > t2) > t3)
            assert p2 == (t1 >> p2)
            assert p3 == (t2 >> p3)
            assert p4 == (t3 >> p4)

            assert p1 == (((p1 > {t1 > p2}) > {t2 > p3}) > {t3 > p4})

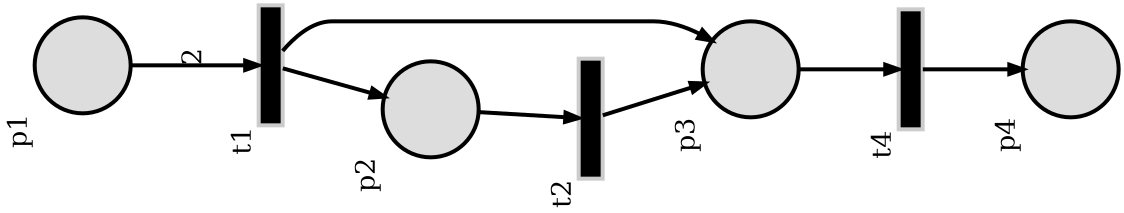

            _ = net.Arc(weight=2)
            assert t1 == (p1 >> _ >> t1 > {
                p2 > (t2 > (p3 > (t4 > p4))),
                p3,
            })

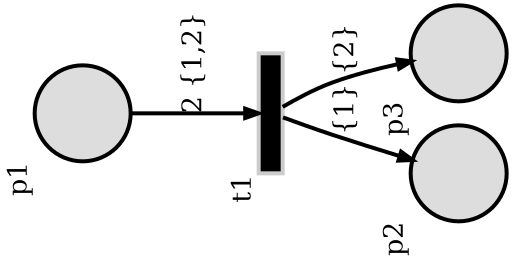

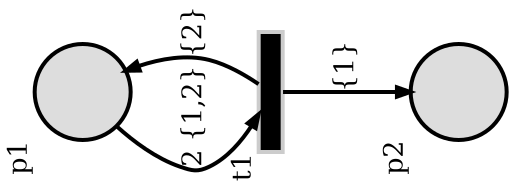

            a1 = net.Arc(labels=[1])
            a2 = net.Arc(labels=[2])
            a = net.Arc(labels=[1, 2], weight=2)

            assert t1 == (p1 >> a >> {
                t1 > a1 > p2,
                t1 > a2 > p3,
            })

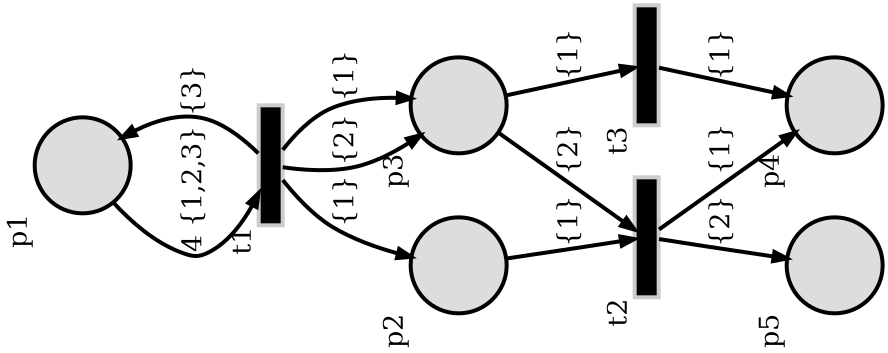

            a = lambda x: net.Arc(labels=[x])
            _ = net.Arc(labels=[1, 2, 3], weight=4)

            assert p1 == (p1 >> _ >> {
                t1 > a(1) > {
                    p2 > a(1) > {t2 > a(1) > p4},
                    p3 > a(2) > {t2 > a(2) > p5},
                },
                t1 > a(2) > {
                    p3 > a(1) > {t3 > a(1) > p4},
                },
            }) >> a(3) >> p1
